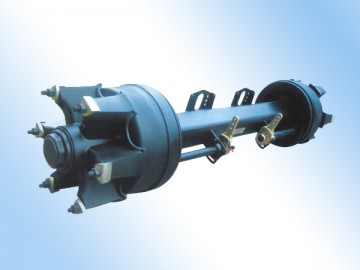

American Type Spoke Hub Axle Series:
Model |
Max Capacity (kg) |
Axle Beam (mm) |
Totall lengthLP (mm) |
Track TR (mm) |
Cenrer Distance of Chamber GM(mm) |
Brake (mm) |
Wheel Fixing |
Recommended Wheel |
Bearing |
Weight (kg) |
||
Stud (mm) |
P.C.D (mm) |
H (mm) |
||||||||||
CJ1151NY | 11500 | Φ127 | 2190 | 1850 | 250 | Φ420x180 | 5-3/4"x10BSW | Φ285.75 | Φ241 |
8.0-20 101-20 |
HM518445/10 | |
CJ1152NY | 11500 | Φ127 | 2143 | 1850 | 220 | Φ420x180 | 5-3/4"x10BSW | Φ285.75 | Φ241 |
8.0-20 101-20 |
HM218248/10 HM212049/11 |
|
CJ1351N | 13000 | Φ127 | 2198 | 1850 | 237 | Φ420x180 | 5-3/4"x10BSW | Φ285.75 | Φ241 |
8.0-20 101-20 |
HM518445/10 | 365 |
CJ1307Wd | 13000 | Φ127 | 2156 | 1817 | 397 | Φ420x180 | 6-3/4"x10BSW | Φ285.75 | Φ241 |
8.0-20 101-20 |
HM518445/10 | 355 |
CJ1364Nb | 13000 | □150 | 3154 | 1840 | 405 | Φ420x180 | 6-3/4"x10BSW | Φ285.75 | Φ241 |
8.0-20 101-20 |
HM518445/10 | 380 |
CJ1364Nc | 13000 | □127 | 2142 | 1817 | 383 | Φ420x180 | 6-3/4"x10BSW | Φ285.75 | Φ241 |
8.0-20 101-20 |
HM518445/10 | |
CJ1366Y | 13000 | Φ146 | 2175 | 1840 | 405 | Φ420x180 | 6-3/4"x10BSW | Φ285.75 | Φ241 |
7.5-20 101-20 |
740/742 759/752 |
|
CJ1367Y | 13000 | Φ127 | 2188 | 1850 | 250 | Φ420x180 | 6-3/4"x10BSW | Φ285.75 | Φ241 |
7.5-20 101-20 |
HM518445/10 |
