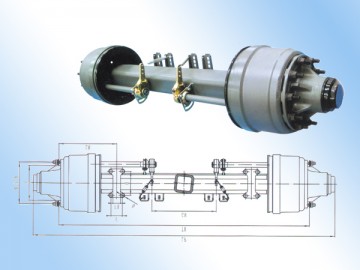

Changjian American built-in-Axle

Changjian American built-in-Axle:

Model

Max Capacity (kg)

Axle Beam (mm)

Totall lengthLP (mm)

Track TR (mm)

Cenrer Distance of Chamber GM(mm)

Brake (mm)

Wheel Fixing

Recommended Wheel

Bearing

Weight (kg)

Stud (mm)

P.C.D (mm)

H (mm)

CJ1101NY

11000

О127

2405

2100

670

Φ311x190

10-M22x1.5

Φ225

Φ176

6.5-1.5 17.5x6.75

HM218248/10

295

CJ1109NY

11000

Φ127

2386

2080

648

Φ311x190

10-M22x1.5

Φ225

Φ176

6.5-1.5 17.5x6.75

33213 HM518445/10

CJ1209NF

12000

Φ127

2160

1820

372

Φ420x180

10-M22x1.5

Φ335

Φ281

7.5V-20

HM518445/10

365

CJ1302NY

13800

О127

2180

1840

390

Φ420x180

10-M22x1.5

Φ285.75

Φ221

7.5V-20

HM518445/10

363

CJ1302NF

13800

□150

2180

1840

390

Φ420x180

10-M22x1.5

Φ285.75

Φ221

7.5V-20

HM518445/10

363

CJ1304NF

13800

□150

2180

1840

390

Φ420x180

10-M22x1.5

Φ335

Φ281

7.5V-20

HM518445/10

370

CJ1304NY

13800

О127

2180

1840

390

Φ420x180

10-M22x1.5

Φ335

Φ281

7.5V-20

HM518445/10

370

CJ1306NY

13800

О127

2190

1850

358

Φ420x180

10-M22x1.5

Φ335

Φ281

8.0V-20

HM518445/10

375

CJ1309NY

13800

О127

2140

1820

417

Φ420x180

8-M20x1.5 8-M30x1.5

Φ285

Φ221

7.5V-20

32217/32218

363

CJ309NF1

13800

□150

2140

1820

417

Φ420x180

8-M20x1.5 8-M30x1.5

Φ285

Φ221

7.5V-20

32217/32218

358

CJ1332NF

13800

□150

2167

1840

380

Φ410x180

8-11/8-9BSF

Φ285

Φ221

7.5V-20

32217/32218

CJ1333NY

13800

□150

2180

1840

360

Φ420x180

10-M22x1.5

Φ335

Φ281

7.5V-20

HM518445/10

CJ1330NF

13800

□150

2178

1840

340

Φ420x180

10-M22x1.5

Φ285.75

Φ221

7.5V-20

HM518445/10

CJ1402NF

14000

□150

2180

1840

342

Φ420x220

10-M22x1.5

Φ335

Φ281

7.5V-20

HM518445/10

380

CJ1501NY

15980

Φ127

2200

1850

395

Φ420x180

10-M22x1.5

Φ335

Φ281

8.0V-20

HM518445/10 HM220149/10

CJ1501NF

15980

□150

2200

1850

395

Φ420x180

10-M22x1.5

Φ335

Φ281

8.0V-20

HM518445/10 HM220149/10

403

CJ1601NY

16980

Φ127

2200

1850

348

Φ420x180

10-M22x1.5

Φ335

Φ281

8.0V-20

HM518445/10 HM220149/10

CJ1601NF

16980

□150

2200

1850

348

Φ420x180

10-M22x1.5

Φ335

Φ281

8.0V-20

HM518445/10 HM220149/10

420

CJ2001NY

2000

□150

2250

1850

345

Φ420x180

10-M24x1.5

Φ335

Φ281

85V-20

HM518445/10 32222

435

Track length and air chamber center are optional
ABS and automatic slack adjuster available
