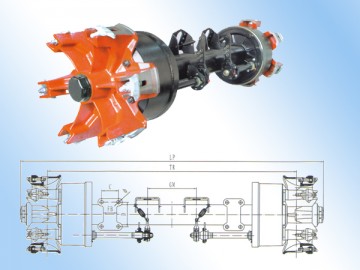

Changjian German Type Six-Spoke Axle Series:
Model |
Max Capacity (kg) |
Axle Beam (mm) |
Totall lengthLP (mm) |
Track TR (mm) |
Cenrer Distance of Chamber GM(mm) |
Brake (mm) |
Wheel Fixing |
Recommended Wheel |
Bearing |
Weight (kg) |
|||
Stud (mm) |
P.C.D (mm) |
H (mm) |
|||||||||||
CJ1204LF | 12000 | □150 | 2180 | 1870 | 419 | Φ420x180 | 6-M20x2 | Φ335 | Φ290 |
8.0-20 8.5-24 |
130-20 |
33213/33118 | 485 |
CJ1212LF | 12000 | □150 | 2156 | 1840 | 374 | Φ420x200 | 6-M20x2 | Φ335 | Φ290 |
8.0-20 8.5-24 |
130-20 130-24 |
33213/33118 | 510 |
CJ1212LF | 14000 | □150 | 2186 | 1840 | 354 | Φ420x200 | 6-M20x2 | Φ335 | Φ290 |
8.0-20 8.5-24 |
147-20 147-24 |
33215/32219 | 365 |
CJ1603LF | 16000 | □150 | 2252 | 1840 | 252 | Φ420x200 | 6-M20x2 | Φ335 | Φ290 |
8.0-20 8.5-24 |
147-20 147-24 |
33214/32222 | 355 |
CJ1606LF-20 | 16000 | □150 | 2290 | 1870 | 287 | Φ420x200 | 6-M20x2 | Φ335 | Φ290 |
8.0-20 130-20 |
33214/32222 | ||
CJ1803LF | 18000 | □150 | 2272 | 1860 | 264 | Φ420x200 | 6-M20x2 | Φ335 | Φ290 |
8.0-20 101-20 |
33214/32222 |
