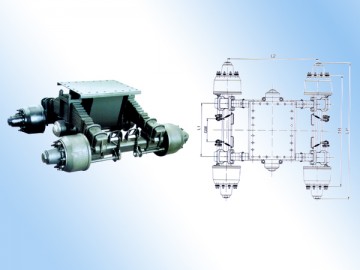

Drum Type Bogie Suspension：
| Model |
Max Capacity (kg) |
Axle Beam (mm) |
Totall lengthLP (mm) |
Track TR(mm) |
Cenrer Distance of Chamber GM(mm) |
Brake (mm) |
Wheel Fixing |
Recommended Wheel |
Bearing |
L2 Wheel Base |
L3 Height of Pedestal |
L1 Spring Center |
Remark | ||
|
Stud (mm) |
P.C.D (mm) |
H (mm) |
|||||||||||||
| CJ2401PH | 24000 | □150 | 2158 | 1840 | 422 | Φ420x180 | 10-M22x1.5 | Φ335 | Φ281 | 7.5V-20 | 33213/33118 | 1400 | 600 | 980 | |
| CJ2403PH | 24000 | □150 | 2180 | 1870 | 408 | Φ420x200 | 10--M22x1.5 | Φ335 | Φ281 | 7.5V-20 | 33213/33118 | 1400 | 600 | 980 | |
| CJ2413PH | 2400 | □150 | 2158 | 1840 | 422 | Φ420x180 | 10-M22x1.5 | Φ335 | Φ281 | 7.5V-20 | 33213/33118 | 1400 | 660 | 980 | |
| CJ2801PH | 28000 | □150 | 2228 | 1870 | 385 | Φ420x200 | 10-M22x1.5 | Φ335 | Φ281 | 8.0V-20 | 33215/32219 | 1550 | 600 | 980 | |
| CJ3201PH | 32000 | □150 | 2276 | 1850 | 260 | Φ420x200 | 10-M20x1.5 | Φ335 | Φ281 | 8.5V-20 | 33214/32222 | 1550 | 600 | 900 | |
|
CJ3207PH (Oil) |
22000 | Φ127 | 2140 | 1816 | 367 | Φ420x180 | 10-M22x1.5 | Φ285.75 | Φ221 | 7.5V-20 | HM212049/11 | 1550 | 600 | 900 |
Oil Lubrication |
| HM218248/10 | |||||||||||||||
| CJ3209PH | 32000 | □150 | 2300 | 1870 | 293 | Φ420x220 | 10-M22x1.5 | Φ335 | Φ281 | 8.5V-20 | 32314/32222 | 1550 | 600 | 900 | |
| CJ3601PH | 36000 | □150 | 2296 | 1870 | 280 | Φ420x220 | 10-M22x1.5 | Φ335 | Φ281 | 8.5V-20 | 33214/32222 | 1550 | 600 | 900 | |
|
CJ2402PH LF |
24000 | □150 | 2150 | 1840 | 389 | Φ420x180 | 6-M22x2 | Φ335 | 8.5V-24 | 32313/33118 | 1400 | 600 | 980 | ||
|
CJ2403PH LF |
24000 | □150 | 2188 | 187 | 408 | Φ420x200 | 6-M22x2 | Φ335 | Φ281 | 8.5V-20 | 33213/33118 | 1400 | 600 | 980 | |
|
CJ2802PH LF |
2800 | □150 | 2184 | 1840 | 354 | Φ420x200 | 6-M22x2 | Φ335 | 8.5V-24 | 33215/32219 | 1550 | 600 | 900 | ||
|
CJ3202PH LF |
3200 | □150 | 2282 | 1870 | 282 | Φ420x200 | 6-M22x2 | Φ335 | 8.5V-24 | 32314/32222 | 1550 | 600 | 900 | ||
|
CJ3602PH LF |
3600 | □150 | 2282 | 1870 | 274 | Φ420x200 | 6-M22x2 | Φ335 | 8.5V-24 | 32314/3222 | 1550 | 600 | 900 | ||
| CJ2410PH | 24000 | □150 | 2180 | 1840 | 342 | Φ420x200 | 6-M22x2 | Φ335 | Φ281 | 7.5V-20 | HM518445/10 | 1550 | 600 | 900 | |
| CJ3210PH | 32000 | □150 | 2200 | 1850 | 348 | Φ420x200 | 6-M22x2 | Φ335 | 8.5V-24 |
GM518445/10 HM220149/10 |
1550 | 600 | 900 | ||
