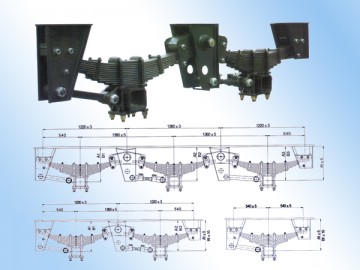

German Type Tri-Suspension Series：
| Model |
A1(mm) Unladen |
B1(mm) Laden |
A2(mm)Unladen | B2(mm)Laden | A3(mm)Unladen | B3(mm)Laden | Leaf Spring | Axl Load(T) |
| FHXG1203-486 | 486 | 456 | 486 | 456 | 486 | 456 | 12x100x12 | 12x3 |
| FHXG1403-486 | 486 | 456 | 486 | 456 | 486 | 456 | 12x100x12 | 14x3 |
| FHXG1603-510 | 510 | 480 | 510 | 480 | 510 | 480 | 14x100x12 | 16x3 |
German Type Tandem Suspension Series：
| Model | A1(mm) Unladen | B1(mm) Laden | A2(mm) Unladen | B2(mm) Laden | Leaf Spring | Axl Load(T) |
| FHXG1202-486 | 486 | 456 | 486 | 456 |
12x100x12 |
12x3 |
| FHXG1402-486 | 486 | 456 | 486 | 456 | 12x100x12 | 14x3 |
| FHXG1602-510 | 510 | 480 | 510 | 480 | 14x100x12 | 16x3 |
German Type Tandem Suspension Series：
| Model | A1(mm)Unladen | B1(mm)Laden | Leaf Spring | Axl Load(T) |
| FHXG1201-486 | 486 | 456 | 12x100x12 | 12 |
| FHXG1401-486 | 486 | 456 | 12x100x12 | 14 |
| FHXG1601-510 | 510 | 480 | 14x100x12 | 16 |
Renark：Quantity and width of Leaf Spring and whellbase is optional by your request；Suitable for Square 150mm Axles.
